Hydraulic Breaker Selection Guide for Global Contractors: Excavator Attachment Matching for Mining & Construction

Introduction

In the construction machinery industry, choosing the right hydraulic breaker for excavators is critical for maximising productivity, protecting your excavator, and reducing long-term maintenance costs. However, hydraulic breaker selection is not a one-size-fits-all process. Each attachment—whether hydraulic breakers, grapple, or bucket—has its own recommended excavator weight range.

Improper excavator attachment matching can result in:

Reduced operational efficiency
Premature component failure
Excavator’s boom and hydraulic system damage
Machine instability and safety risks

Therefore, the working weight of a hydraulic breaker must always remain within the load-bearing capacity of the excavator’s arm to ensure safe and balanced operation.
This guide explains the engineering principles for selecting a hydraulic breaker for excavators.

1. Hydraulic Breaker Selection Based on Weight Ratio

The most widely used method for matching excavator attachments is the weight ratio between the hydraulic breaker and the excavator.

Industry Standard Ratio

Hydraulic breaker Weight = 5%-15% of Excavator Operating Weight

Example:

A 20-ton excavator typically matches a 1,000 kg to 3,000 kg hydraulic breaker

Why It Matters:

Too small: Inefficient breaking force, increased wear.
Too large: Excessive stress on the excavator boom and hydraulic system.

This ratio is a widely accepted guideline for the first checkpoint in any hydraulic breaker selection process, ensuring safe, efficient matching.

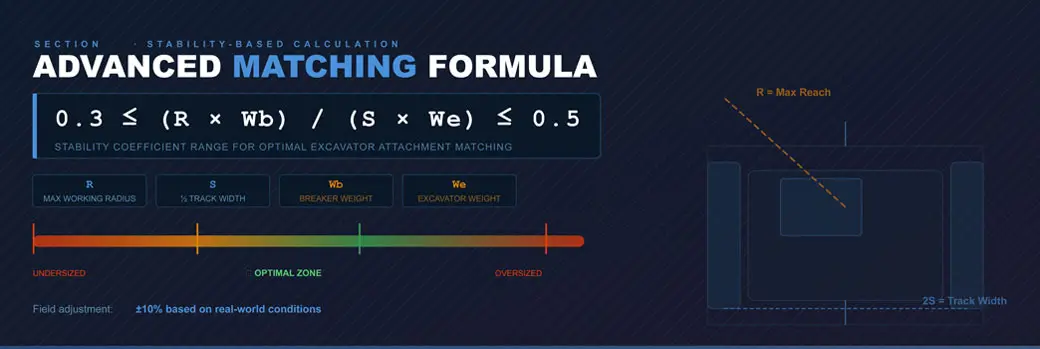

2. Advanced Excavator Attachment Matching Formula

For more precise excavator attachment selection, engineers often use a stability-based calculation: 0.3 ≤ (R × Wb) / (S × We) ≤ 0.5

Variables:

R = Maximum working radius
S = Half of the excavator track width
Wb = Hydraulic breaker weight
We = Excavator operating weight

Interpretation:

< 0.3: Hydraulic breaker undersized → low efficiency, higher wear risk
> 0.5: Hydraulic breaker oversized → risk of excavator and hydraulic system damage

This formula improves the accuracy of selecting hydraulic breakers, especially in challenging environments. It should ideally be used alongside real-world application conditions, with adjustments typically around ±10% based on field experience.

3. Hydraulic System Compatibility (Critical for Performance)

Weight matching alone is not sufficient. The excavator’s hydraulic system must be capable of properly driving the attachment. Improper hydraulic matching will also lead to poor performance or damage.

Key Parameters:

Oil Flow (L/min)

Hydraulic breaker oil flow requirements must match the excavator’s hydraulic system.

Too Low→ weak impact
Too High → internal parts or oil hose damage

Operating Pressure (bar)

Must align with the excavator relief pressure
Directly affects durability and performance

Best Practical Guidelines:

Oil Flow = 60%–80% of the excavator hydraulic output
Operating Pressure = 30–40 bar lower than the excavator system pressure

Hydraulic system compatibility is often the most critical factor in excavator attachment matching, and is also essential for long-term reliability and performance.

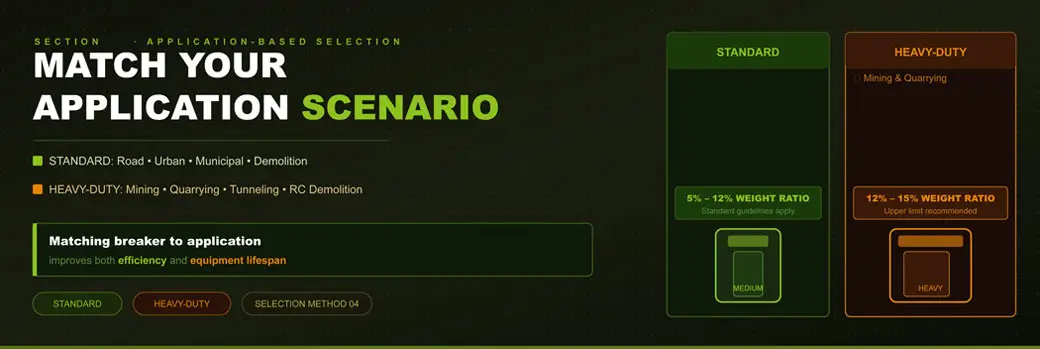

4. Application Scenarios-Based Hydraulic Breaker Selection

Different working conditions require different hydraulic breaker configurations.

Standard Applications:

Road construction
Urban construction
Municipal works
General demolition

→ Follow standard weight ratio guidelines

Heavy-Duty Applications:

Mining
Quarrying
Tunneling
Reinforced concrete demolition

→ Select hydraulic breakers toward the upper limit of the recommended weight limit

Matching the hydraulic breaker to the application improves both efficiency and equipment lifespan.

5. Mounting Compatibility & Quick Coupler Considerations

After selecting the hydraulic breaker model, physical compatibility is a crucial yet often overlooked step in matching excavator attachments.

Key Mounting Bracket Interface Parameters:

Pin diameter(Front/Back)
Pin centre distance
Bracket width

If using a quick coupler, ensure:

Coupler compatibility
Proper locking mechanism
No tolerance mismatch

Incorrect alignment of the mounting bracket (also known as the “hammer bracket” or “mounting interface”) can lead to installation failure, vibration, wear, and safety hazards.

To simplify this process, it is recommended to refer to the manufacturer’s detailed technical drawings or product specification sheets.

6. Common Hydraulic Breaker Selection Mistakes

Avoid these frequent errors:

Choosing based on price instead of specifications
Ignoring hydraulic flow and pressure system requirements
Oversizing for “more power.”
Not considering actual application conditions
Skipping mounting compatibility validation before purchase

A systematic, professional approach to matching excavator attachments prevents costly downtime.

7. How to Choose the Right Supplier (Critical for B2B Buyers)

For distributors and contractors, selecting the right supplier is as important as selecting the product.

Look for:

Full product range (multi-tonnage coverage)
Engineering support for matching
Custom mounting solutions
Spare parts availability
Fast delivery to target regions

Conclusion： Perfect Hydraulic Breaker Selection = Higher Profitability

Even though there is no universal solution, by balancing the engineering principles, you can achieve optimal performance, safety, and ROI. For contractors and distributors in the Middle East, Africa, South America, Southeast Asia, and Central Asia, a systematic approach to the right and effective hydraulic breaker selection requires a multi-dimensional evaluation, including:

Correct hydraulic breaker matching selection
Accurate excavator attachment matching
Adaptation to local working conditions
Reliable supplier partnership

A scientific selection process ensures:

Maximum productivity
Lower maintenance costs
Longer equipment lifespan
